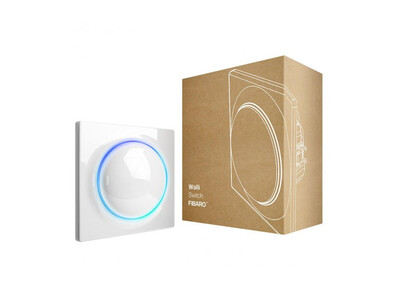

Fibaro Walli Switch, Z-Wave Plus wall mounted relay switch, wireless on-off trigger, White

Home/Lighting & Curtains/Lighting Switches/Fibaro Walli Switch, Z-Wave Plus wall mounted relay switch, wireless on-off trigger, White

Write a review

Model:FGWDSEU-221

Hover on image to enlarge

BrandFIBARO

In stock

EGP4,830.00

Price in points: 241500 points

Quantity:

+ −

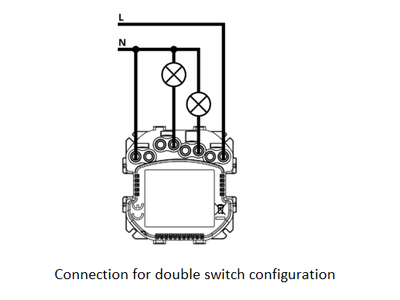

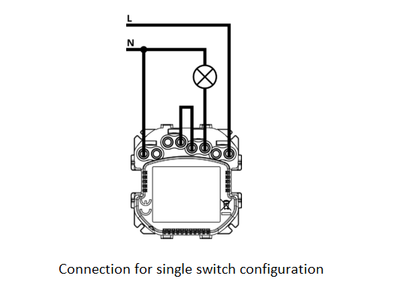

FIBARO Walli Double Switch is a smart wall switch designed to control one or two light sources via Z-Wave network.

It measures active power and energy consumed by the controlled load.

You can install it with provided cover plate and switch button or other compatible.

Our advantages

Payment options

Power supply	110-230V~ 50/60 Hz
Rated load current	13A per one channel 16A total
Compatible load types	incandescent bulbs fluorescent lamps electronic transformers ferromagnetic transformers LED
Active element	micro-gap relay μ
Recommended external overcurrent protection	10A type B circuit breaker (EU) 13A type B circuit breaker (Sweden)
For installation in boxes	Ø = 60mm, depth ≥ 40mm
Recommended wires	cross-section area between 1.5-4.0mm2, stripped 11.5-13mm of insulation
Operating temperature	0–35°C
Ambient humidity	10–95% RH without condensation
Radio protocol	Z-Wave (500 series chip)
Radio frequency band	868.4 MHz
Max. transmitting power	+6dBm
Range	up to 50m outdoors up to 40m indoors (depending on terrain and building structure
Dimensions (Height x Width x Depth)	86 x 86 x 51 mm
Compliance with EU directives	RoHS 2011/65/EU RED 2014/53/EU
