Heltun Fan Coil Thermostat, Z-Wave Thermostat for A/C and electrical/underfloor heating, Black glass Silver frame

HE-FT01-SK
Hover on image to enlarge
In stock
EGP5,390.00
Black / Silver
Price in points: 269500 points
+

The HE-FT01 Fan Coil Thermostat is elegantly designed and ‘Impossibly Smart’ providing wireless over the Internet control of your home’s fan coil heating/cooling system. It maintains constant room temperatures by using internal air temperature sensor and controls 2 pipe or 4 pipe air conditioning/heating systems such as: split/multi split systems, chillers and fan coil unit systems, central air conditioning systems, multi zone VRF/VRV, etc.

  • On wall thickness of only 9 mm
  • 24 design combinations: four frames and six glass colors

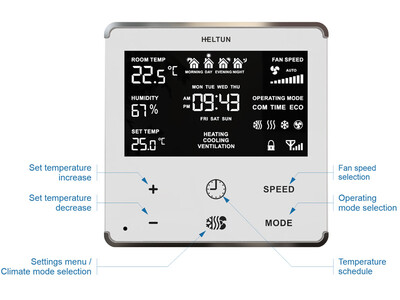

  • Big informative display with six highly sensitive touch buttons
  • LCD brightness manual and auto control depending on room illumination
  • 7 days temperature schedule
  • Ambient temperature, humidity and light sensors
  • Software energy consumption meter
  • 5 dry contact channels with max load of 5A per channel
  • Advanced zero cross technology
  • Supports 2 and 4 pipe fan coil systems
  • Works both with VAC 85 265 and VDC 24 48
  • Latest Z Wave 700 platform with S2 security and SmartStart
  • First multi frequency Z Wave device
  • Z Wave Plus V2 and CE certified
Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

The HE-FT01 is HELTUN’s advanced programmable thermostat for air conditioners and heating systems that is ‘impossibly thin’ on the wall while being packed full of features. It delivers highly accurate comfort control using proprietary technology and four built-in sensors. Even though it stands out only 9mm from the wall, it provides all the information you need at-a-glance without having to touch the display.

You can monitor and control the HE-FT01 from anywhere in the world using a Z-Wave hub and your smartphone.* And because it uses the Z-Wave 700 Platform, SmartStart, and S2 Security, the HE-FT01 can be placed up to 100 meters away from the hub and is a snap to install. Best of all, real-time and cumulative energy consumption meters help you save money on energy costs while staying comfortable all year long.

The HELTUN HE-FT01 is part of an entire line of smart, connected products designed to provide the best technology has to offer without compromising stylish living.





TAKE CONTROL







HELTUN thermostat integrates seamlessly into your interior design and is available in 30 combinations:

5 frames (silver, chrome, white, gloss and matte black) and 6 glass types (white, black, yellow, green, red, blue)



ADDITIONAL SENSORS THAT

HELP YOU SAVE ENERGY

When an electronic device carries out its function, a certain amount of heat is generated. As a result, the ambient temperature is usually reported incorrectly, with merely a 1.5-2.0 degrees Celsius precision. HELTUN engineers added two additional internal sensors that consider excess heat generated from the device itself, whilst a special compensating software calculates the ambient temperature with an incredible 0.2-0.3 degrees Celsius precision.



INPUTS & OUTPUTS

The HELTUN Fan Coil Thermostat has 5 relay outputs each with max 5A load and two independent inputs for relay channels which allow it to control systems with different power sources for Fan Speed and heating/cooling control. It is possible or to use outputs as dry contacts. E.g. to  Input 1 with the required power source is for relay channels 1, 2 and 3, which can be loaded up to a max 15A and used for fan speed control.
Input 2 with the required power source is for relay channels 4 and 5, which can be loaded up to a max 10A and used for heating/cooling control











SAFE & SAVE

In case of a power cut or disconnection from the main power source, internal memory is not erased – once you switch the device back on, all your saved settings will be fully functional.

​To prevent children from meddling with your thermostat settings, you can activate the special child-safe mode.



EASY INSTALLATION

HELTUN devices can be easily installed into any standard wall socket (rectangular or round type).

PRODUCT DIMENSIONS

Specifications

• Front frame dimensions: 89x89x9mm
• Back dimensions: 53x53x28mm
• Material: Flame retardant plastic, tempered glass
• 4 frame colors: Silver, Chrome, Black, White
• 6 glass colors: White, Black, Yellow, Green, Red, Blue
• LCD: 73x42mm, black with white icons
• 6 sensitive capacitive touch buttons
• Operating temperature: -10°C – +60°C
• Power supply: 100VAC – 230VAC, 50Hz/60Hz
• Power consumption: 1.5W • 5 relays with resistive load up to 5A each
• 2 relays for cooling and heating valves
• 3 relays for fan speed
• 2 independent relays input, dry contact type
• Relay life time: 100.000 switches
• Internal ambient brightness sensor
• Internal temperature sensor
• Measurement range: -40°C to +125°C
• Accuracy: ±0.5°C
• Internal humidity sensor
• Measurement range: 0 – 80%RH
• Accuracy: ±3.0%RH
• IP class: IP21
• Z-Wave Frequency: 868,4 Mhz
• Z-Wave SDK: V7.11.1
• Z-Wave Plus module: ZGM130S

Features

Connection Technology:
Z-Wave

Downloads

User Manual (Heltun_HE-FT01_User_Manual_B27AM.pdf, 1,178 Kb) [Download]

Package Contents

- Fan coil thermostat

- Back plate

- Screw set
