Fibaro Wall Plug, Z-Wave Plus Intelligent Plug, 2500W, power consumption measuring

FGWPF-102
Hover on image to enlarge
In stock
EGP2,095.00
Price in points: 104750 points
+

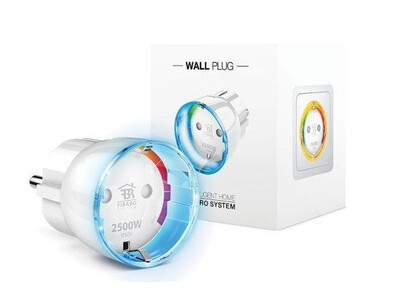

FIBARO Wall Plug is a universal, Z-Wave compatible, relay switch in the form of a socket adapter. The Plug may be used to operate any device up to 2500W power output. The Plug features power consumption measuring and uses a crystal LED ring to visualize the current load by colour changing illumination.

FIBARO Wall Plug may be operated using the service button located on its casing or via any Z-Wave compatible controller.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

Specifications

Power supply: 230V AC, 50/60 Hz
Rated load current: 11A
Power consumption: up to 1.6W
Power output (for resistive load): 2.5kW
In accordance with EU standards: RED 2014/53/EU
RoHS 2011/65/EU
Operational temperature: 0 – 40°C
To be used with E or F type (Schuko) sockets:
  • CEE 7/16 – max load 2.5 A
  • CEE 7/17 – max load 11A
  • Dual type plugs E/F
Radio protocol: Z-Wave
Z-Wave+ (firmware 3.2 or higher)
Radio frequency: 868.4 MHz
Radio transmit power: up to -10 dBm (EIRP)
Range: up to 50 m outdoors
up to 30 m indoors
up to 40 m indoors (firmware 3.2 or higher)
(depending on terrain and building structure)
Dimensions: (D x H): 43 x 65mm

Features

Connection Technology:
Z-Wave
Energy Measure:
Yes

Downloads

User Manual (FGWPEF-102-EN-A-v2.1.pdf, 508 Kb) [Download]

Package Contents

- 1 Wall plug
