Fibaro Flood Sensor, Z-Wave Plus Water Leak Detector, temperature sensor, White

Write a review
FGFS-101
Hover on image to enlarge
BrandFIBARO
In stock
EGP5,170.00
Price in points: 258500 points
+ −

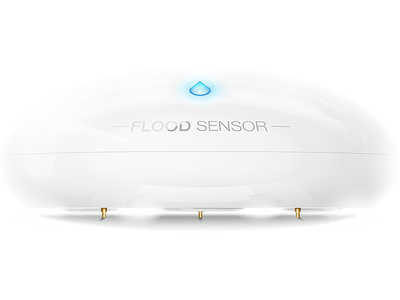

FIBARO Flood Sensor is a universal, Z-Wave compatible, flood and temperature sensor. Device can be battery or VDC powered. Flood alarm is sent to the Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact.

The device has built in temperature sensor, monitoring temperature of e.g. floor. Flood Sensor is designed to be placed on the floor or on a wall with a flood sensor probe extended by connected wire. The device has built in visual LED indicator and acoustic alarm. LED diode signals flood, operating mode or the Z-Wave network communication range.

In addition, the sensor is equipped with a tilt sensor reporting tilt or movement to the main controller e.g. when someone has taken the Sensor from its original location.

FIBARO Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of substantial inundation of water.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

Specifications

Power supply: Battery or 12–24V DC supply (LPS or NEC class 2)
Battery type: CR123A/CR17345 battery, 3.0V DC
Power consumption (at VDC operation) 0.4W
Output terminals maximum current carrying capacity:
(ALARM NC, TAMP NC)		 25mA
Maximum voltage at output terminals:
(SMOKE NC, TAMP NC)		 24V DC / 20V AC
EU standards compliance: RED 2014/53/EU
RoHS 2011/65/EU
Radio protocol: Z-Wave
Z-Wave+ (firmware 3.2 or higher)
Radio frequency: 868.4 MHz
Radio transmit power: up to -5 dBm (EIRP)
Range: up to 50 m outdoors
up to 30 m indoors
up to 40 m indoors (firmware 3.2 or higher)
(depending on terrain and building structure)
Operational temperature: 0°C to 40°C – battery powering mode
-20°C to 70°C – VDC powering mode
Measured temperature range: -20°C to 100°C
Temperature measuring accuracy: 0.5°C (within 0 – 40°C range)
Dimensions (diameter x height): 72 x 28mm

Features

Connection Technology:
Z-Wave

Downloads

User Manual (FGFS-101-EN-T-v2.1.pdf, 1,315 Kb) [Download]

Package Contents

- 1x Fibaro Flood Sensor

- 1x Quick guide
