Foscam 8-channel, PoE Network, 1080p Full HD Video Recorder, White

FN7108HE
Hover on image to enlarge
In stock
EGP5,260.00
Please select internal HDD option. "None" means the recorder will be supplied without internal storage.
Price in points: 263000 points
+

8 Channel Network Video Recorder, IP Camera NVR for CCTV Security Surveillance Systems, PoE Connections, Motion Detection, Supports HDMI VGA Display and USB Storage, ONVIF

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

The Foscam FN7108HE Network Video Recorder is the heart of a surveillance system. It is designed to work 24 hours a day, 7 days a week and supports a hard disk of up to 4TB (not included). So you do not have to miss a moment thanks to continuous video recordings. This network video recorder (NVR) has eight built-in Power-over-Ethernet (PoE) ports for easy connection of cameras. If your camera supports PoE, fewer cables need to be laid. The NVR captures 1080p Full-HD images, so you do not miss details. The video images are automatically analyzed; in case of events a warning can be sent via email or FTP.

The material that is stored on the hard disk is constantly replaced by new material. However, the recording time can be extended. Recording possibilities based on a schedule or motion detection enables playback in the past. Watch the video material from four channels simultaneously to see the entire event. Intelligent timeline lets you go back to different days, hours or minutes and view everything you've missed.

Specifications

Video Input


IP Video Input 8-ch FHD IP camera input
Capitable Camera Foscam H.264 and MJPEG IP Cameras,other brand ONVIF cameras

Video Output


Decoding Resolution 1080P(1920 x 1080),960P(1280 x 960), 720P(1280 x 720), VGA(640 x 480), VGA(640 x 360), QVGA(320 x 240), QVGA(320 x 180)
HDMI Output 1-ch, resolution: 1920 × 1080 /60Hz, 1280 × 720 /60Hz,1440 × 900 /60Hz,1024 × 768 /60Hz
VGA Output 1-ch, resolution: 1920 × 1080 /60Hz, 1280 × 720 /60Hz,1440 × 900 /60Hz,1024 × 768 /60Hz

HDD


HDD Type One SATA interface for one 3.5 inch disk (Not Supplied)
Capacity Up to 4TB, compatible with Seagate, Western Digital hard disk

External Interface


Network One 10/100 Mbps RJ45 port
USB 1× USB2.0 / 1× USB3.0 interface for mouse and external storage
Video Output One HDMI, and one VGA
Power Input One DC power supply jack
Button One power on/off button,and one reset button
Alarm in/out N/A

Software Features


Control Method Mouse/Internet Browser
Display Switch 4 channel 1080P or 8 channel 720P display switch

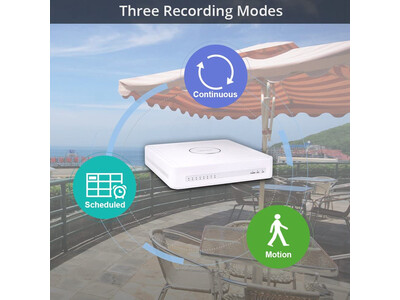

Record Mode Manual /Time Scheduled/Alarm Triggered/Motion Detect
Video Playback 4 channel 1080P synchronous video playback
PTZ Supports Pan/Tilt/Zoom control,Optical Zoom supportted
Camera Search/Management Search cameras in LAN, add camera, and manage a camera list
Application support Remote configuration,video browse,local record,local and remote playback,Remote upgrade
Disk Management Set the video coverage strategy, format disk
Motion Detection Alarm area and schedule settings
User Accounts User account management
Operating System Microsoft Windows XP,  7, 8,10;Mac OS, iOS, Android
Browser Microsoft IE8 and above version or compatible browser;
Google Chrome;
Apple Safari.

Physical and Environmental


Power Supply DC 48V/1.88A
Dimension(LxWxH) 234*234*52mm(L x W x H)
Net Weight (g) 1200g
Operating Temperature -10°C ~ 50°  (14°F ~ 122°F)
Operating Humidity 20% ~ 85% non-condensing
Storage Temperature  -20°C ~ 60°C (-4°F ~ 140°F)
Storage Humidity 0% ~ 90% non-condensing

Downloads

User Manual (User_Manual_for_FN7108HE_V1.0.2_English.pdf, 3,367 Kb) [Download]

Package Contents

- 1x Foscam FN7108HE NVR

- 1x Power Adapter

- 1x Quick Installation Guide

- 1x USB Mouse

- 1x Network Cable
