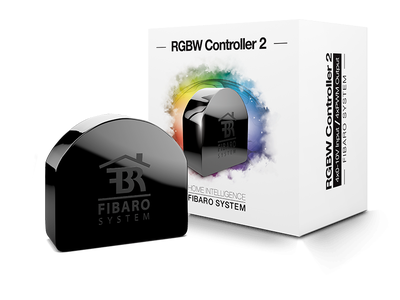

Fibaro RGBW Controller 2, Z-Wave Plus RGBW LED Strips Controller

FGRGBWM-442
Hover on image to enlarge
In stock
EGP1,460.00
Price in points: 73000 points
+

FIBARO RGBW Controller 2 is a universal, Z-Wave Plus compatible RGB/RGBW controller.

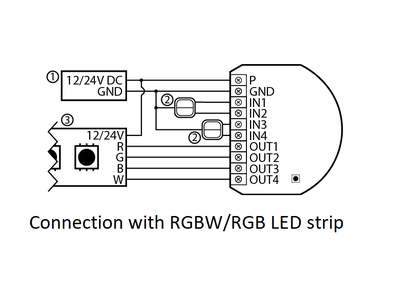

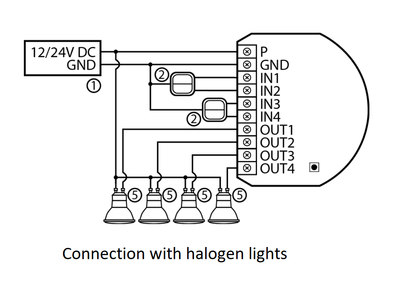

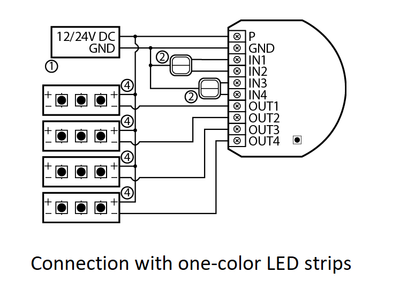

FIBARO RGBW Controller 2 uses PWM output signal, allowing it to control LED, RGB, RGBW strips, halogen lights and other resistive loads. It can also measure active power and energy consumed by the load. Controlled devices may be powered by 12 or 24V DC.

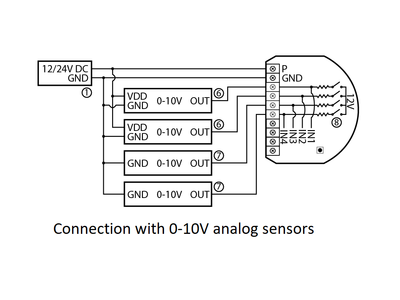

Inputs support momentary/toggle switches and 0-10V analog sensors, like temperature sensors, humidity sensors, light sensors etc.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

Specifications

Power supply: 12/24V DC ±10%
Rated load current: 6A for channel,
12A total for all outputs
Power output: 144W combined for 12V
288W combined for 24V

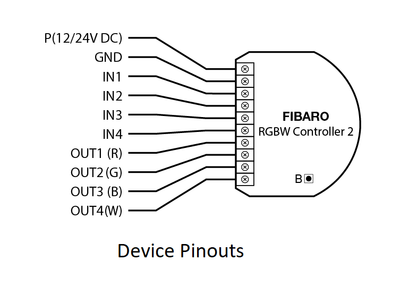

Inputs: 4 inputs, 0-10V (configurable pull-up) or binary
Outputs: 4 outputs, PWM
PWM frequency: 244Hz
Maximum length of wires: 2m
Operating temperature: 0–40°C (32–104°F)
Storage temperature: -40–60°C (-40–140°F)
Radio protocol: Z-Wave (500 series chip)
Radio frequency: 868.4 MHz
Transmit power: EIRP max. +2dBm
Range: up to 50m (164 ft) outdoors
up to 40m (131 ft) indoors
(depending on terrain and building structure)
Recommended wire cross-section area 0.2–2.0mm2 (24–14 AWG)
(depending on load current)
Dimensions (Length x Width x Height): 42.35 x 36.90 x 17.5 mm
(1.67” x 1.5” x 0.69”)
Compliance with EU directives RoHS 2011/65/EU
RED 2014/53/EU

Features

Connection Technology:
Z-Wave
Energy Measure:
Yes
External Control:
Yes
Installation Type:
Built-in Module
Requires Neutral:
Yes

Downloads

User Manual (FGRGBW-442-T-EN-1.1.pdf, 760 Kb) [Download]

Package Contents

- 1x Fibaro RGBW Controller

- 1x Quick Guide
