Aeotec Nano Dimmer, Z-Wave Plus In​-Wall Dimmer Switch for LED, Incandescent, Halogen, Fluorescent Lights, 1.2A, Read Power Consumption

In stock
Price in points: 95500 points

Aeotec smart dimmer switch dramatically improves the lighting in your home. Our 3rd generation of invisible lighting controller outperforms all that has come before it. Dimming is smoother. Compatibility is broader. Lighting is faster and more responsive. Automation and intelligence have never been more powerful. And it comes in such a small size, that you’ll be amazed at just how much functionality we were able to craft inside.

Perfect lighting is a part of every truly smart home. Lighting that is responsive. That is always the right brightness. That is always on when you need it, and off when you don’t. But perfect lighting has never been easy.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options



 Power input: 120 to 240VAC, 50/60Hz.

Rated Current Output: 1.2A maximum

Rated Power Output:

276W maximum

All Motor loads must be under 100W maximum for any region (3-wire power only).

Repeater: Yes

Beaming: Yes

External Switch max wiring length (between COM/S1 and COM/S2):

10 Meters

Minimum Power (Watt):

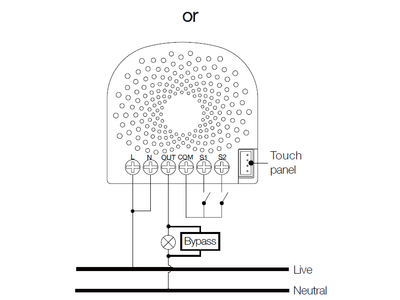

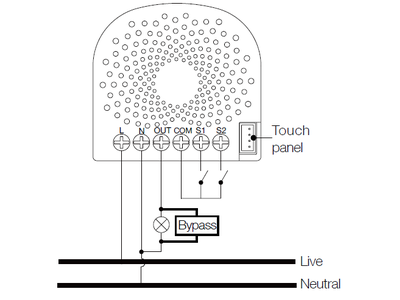

If your load is under the minimum requirement, you may need to install Nano Dimmer Bypass Load.

2-wire (no neutral)

Resistance load only: min 20W.

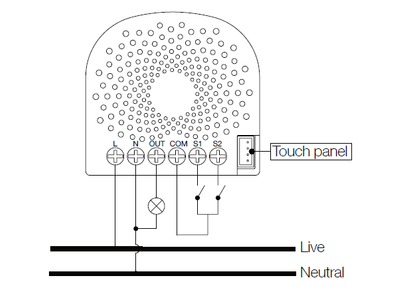

3-wire (with neutral)

Capacitive load: min 11W.

Inductive load: no min / max 100W

Resistance load: min 10W.

Max standby power: <0.8W.

Power measurement accuracy: + or - 3W.

Dimensions: 42.5 x 40 x 20 mm

Operating temperature:

0℃ to 40℃

Relative humidity: 8% to 80%.

Operating distance:

Up to 150 metres outdoors.

Supported External Switches:

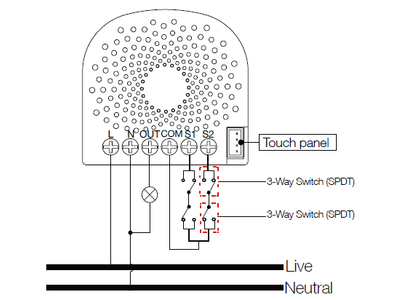

Toggle Switches (2-way, 3-way, 4-way)

Any standard Momentary Push Button (Cannot be used with LED powered momentary push buttons)


Connection Technology:
Energy Measure:
External Control:
Installation Type:
Built-in Module
Requires Neutral:
Z-Wave Repeater:


User Manual (Aeotec-Z-Wave-Nano-Dimmer-User-Guide.pdf, 1,145 Kb) [Download]

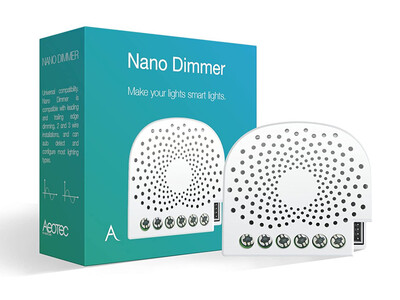

Package Contents

- 1 Nano Dimmer.
