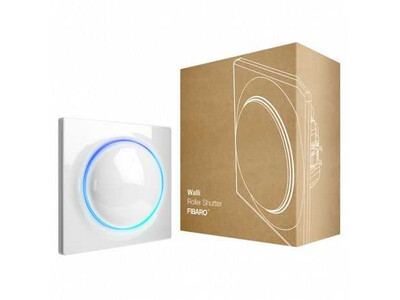

Fibaro Walli Roller Shutter, Z-Wave Plus Smart Wall Blinds and Gates Switch, White

Write a review
FGWREU-111
Hover on image to enlarge
BrandFIBARO
Out of stock
EGP4,500.00
Price in points: 225000 points

FIBARO Walli Roller Shutter is a smart wall switch designed to control motors of roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network.

It measures active power and energy consumed by the controlled load.

You can install it with provided cover plate and switch button or other compatible.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

Specifications

Power supply 110-230V~ 50/60 Hz
Rated load current 4A for motors with compensated power factor (inductive loads)
13A for resistive loads
Compatible load types single-phase AC motors
resistive loads
Required limit switches electronic or mechanic
Recommended external overcurrent protection 10A type B circuit breaker (EU)
13A type B circuit breaker (Sweden)
For installation in boxes Ø = 60mm, depth ≥ 40mm
Recommended wires cross-section area between 1.5-4.0mm2,
stripped 11.5-13mm of insulation
Operating temperature 0–35°C
Ambient humidity 10–95% RH without condensation
Radio protocol Z-Wave (500 series chip)
Radio frequency band 868.4 MHz
Max. transmitting power +6dBm
Range up to 50m outdoors
up to 40m indoors
(depending on terrain and building structure)
Dimensions
(Height x Width x Depth)		 86 x 86 x 51 mm
Compliance with EU directives RoHS 2011/65/EU
RED 2014/53/EU

Features

Connection Technology:
Z-Wave
Energy Measure:
Yes
External Control:
Yes
Installation Type:
Wall Type
Requires Neutral:
Yes
Z-Wave Repeater:
Yes

Downloads

User Manual (FGWREU-111-T-EN-v1.0.pdf, 1,385 Kb) [Download]

Package Contents

- 1x Fibaro Walli Roller Shutter
