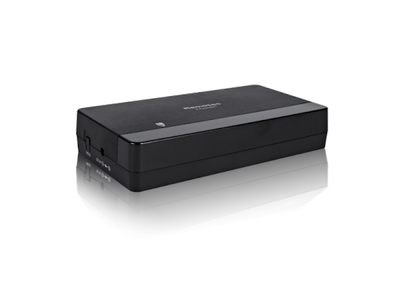

Remotec Z-Wave To AV IR Extender

ZXT-310EU
Hover on image to enlarge
In stock
EGP2,410.00
Price in points: 120500 points
+

Control your traditional AV devices through Z-Wave.

Our advantages
  • — 12 months warranty
  • — 14 Days Return
  • — Different payment methods
  • — Prices are VAT Inclusive
Payment options

Description

ZXT‐310 is a Z‐Wave‐to‐AV IR Extender and it works with any Z‐Wave compliant controller or gateway by translating Z‐Wave Simple AV command to IR control code. User can set the IR code from the built‐in code library of ZXT‐310, or use the learning function of ZXT‐310 through any Z‐Wave controller or gateway.

It also supports Z‐Wave networks with multiple gateways and controllers. Like every Z‐Wave accessory, the user will need to include the ZXT‐310 into his Z‐Wave network using the primary controller. Then, the user can use either the primary controller or secondary controller to configure and setup the ZXT‐310 using Z‐Wave’s configuration command class. Once the configuration and setup is completed, the controller can use Z‐Wave’s “Simple AV commands class” to control their IR‐controlled AV equipment with the ZXT‐310. User can enjoy fully wireless control and home automation system
anywhere at home.



Built‐in IR code library

The built‐in IR code library enables the ZXT‐310 to work with any ZWave compliant gateway and controller. Gateway and controller will not need to have any knowledge related to IR control code. It also eliminates the need for complex set up procedures and proprietary ZWave commands to configure the system. The IR code library supports various brand name of AV equipment found in the today’s market. User can use his controller or gateway to send a 4 digits AV IR code number (include the brand selection) using standard Z‐Wave configuration command.



Host based IR code library

ZXT‐310 also supports host‐based library upgrade for 6 AV database. Once gateway support this advanced feature, 6 AV database can be upgraded by gateway very easily and support different regions and customers.

Specifications

  • MODEL NUMBER
    • BW8371
  • HARDWARE
    • Z-Wave Chip 300 series
    • IR Frequency: Up to 455kHz
  • COMMUNICATION PROTOCOLS
    • Z-Wave
  • Z-WAVE GROUPS
    • One group and five devices (nodes)
  • DIMENSIONS
    • Base size: 139 x 75 x 28.5 mm (LxWxH)
  • CERTIFICATIONS
    • CE, Z-Wave
  • POWER SUPPLY
    •  AC/DC Power adaptor 100~240 V AC input, 5V DC output
  • POWER CONSUMPTION
    • up to 1W
  • RADIO SIGNAL POWER
    • up to 1mW
  • RANGE
    •  up to 150m (outdoors) and 100m (indoors)
  • OPERATIONAL TEMPERATURE RANGE
    • 0-40°C
  • IP CODE
    • IP20

Downloads

Product Catalogue (Product_Catalogue.pdf, 272 Kb) [Download]

User Manual (User_Manual.pdf, 1,017 Kb) [Download]

Code List (Code_List.pdf, 91 Kb) [Download]

Package Contents

  • Main Unit:
    • ZXT‐310: Z‐Wave‐to‐AV IR Extender
    • Power sourcer: 100~240V AC input, 5V DC 1000mA output
    • IR Emitting Cable: 3.5mm Mono plug cable x 3pcs
  • User Manual
  • Code List
  • Warranty sheet
